Smart wireless series

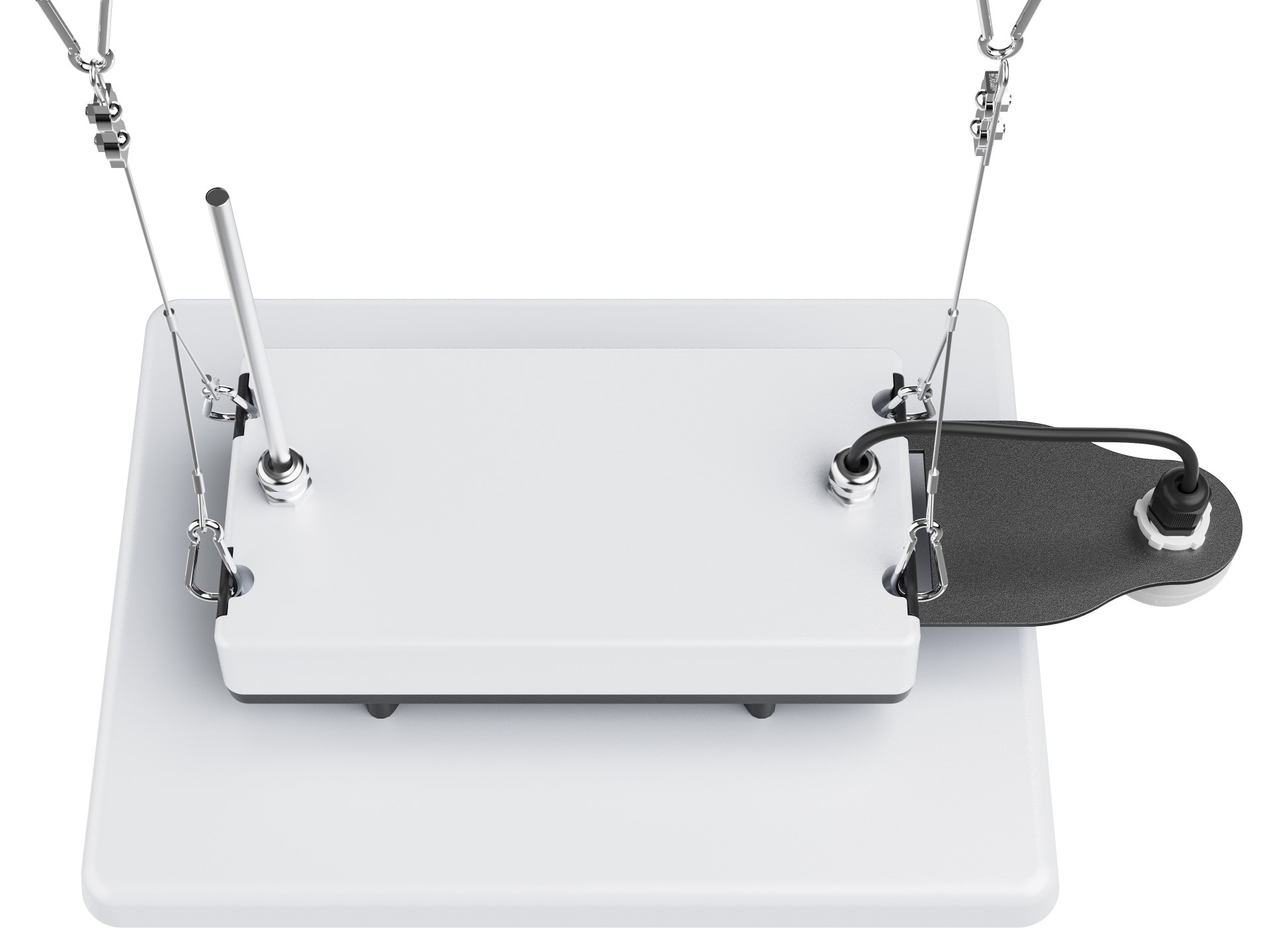

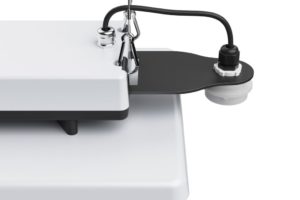

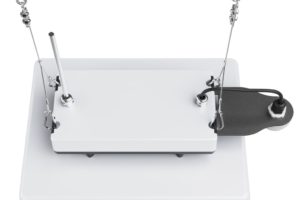

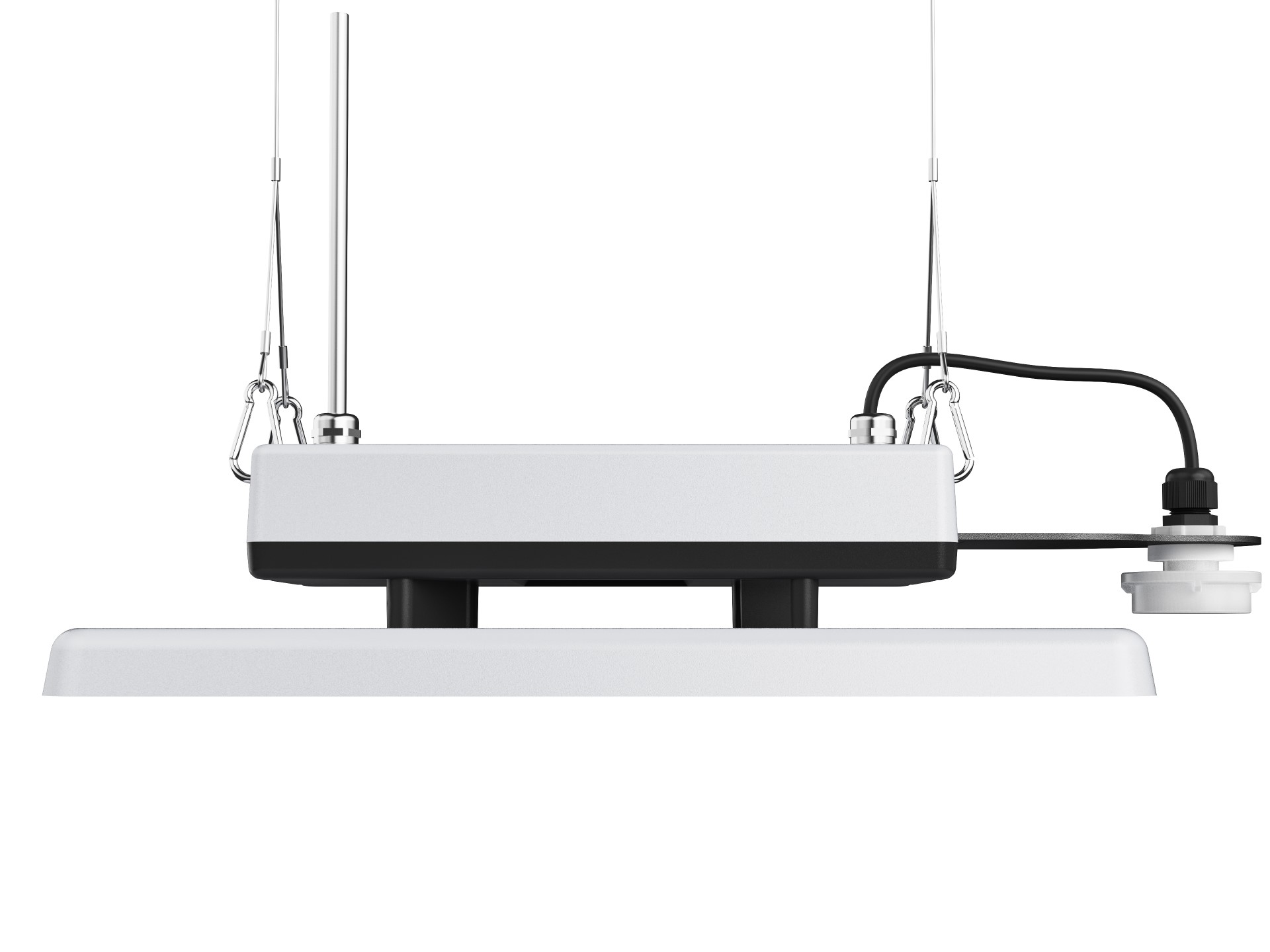

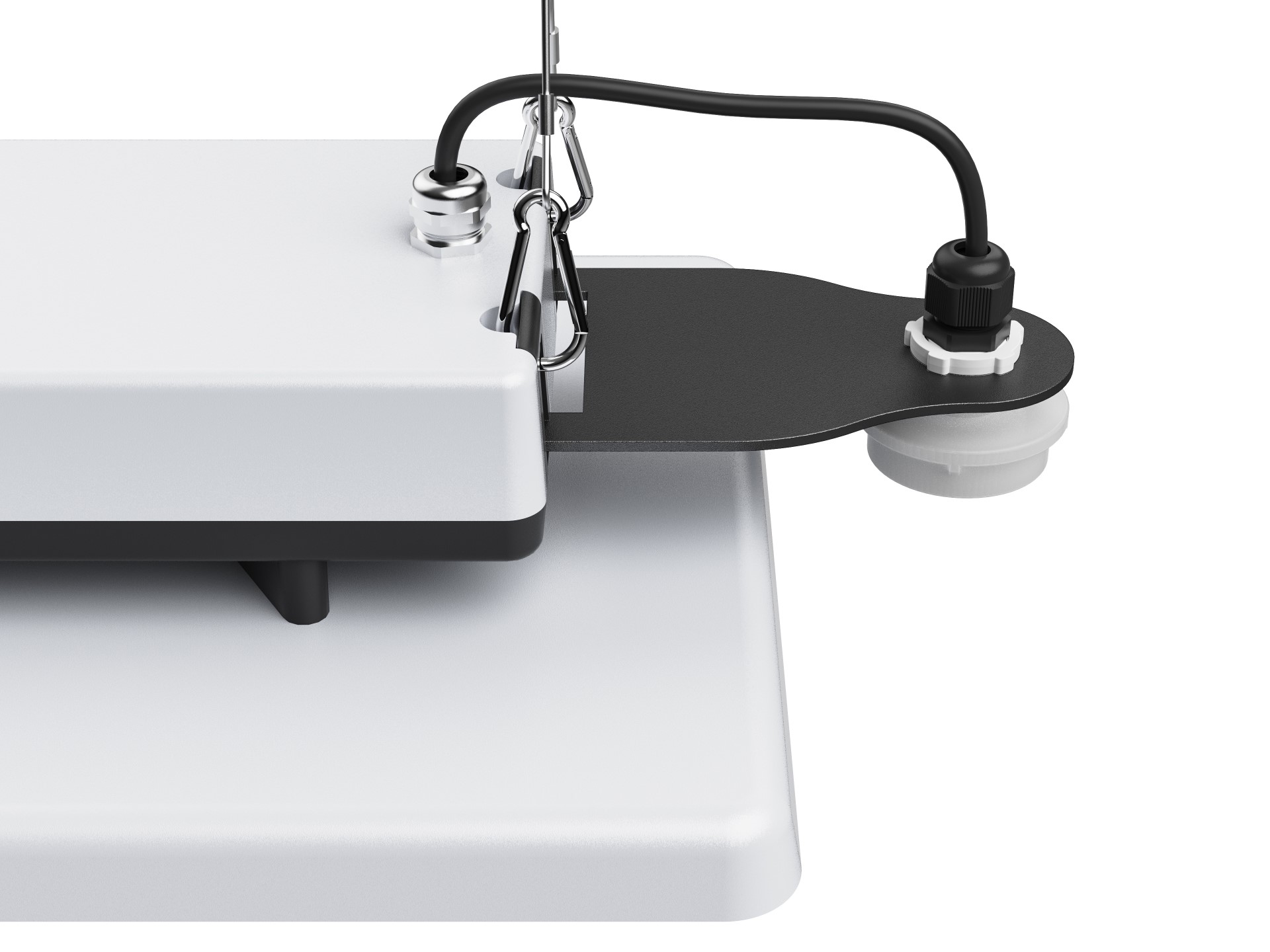

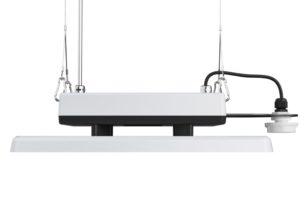

Anti-Glare Zigbee Highbay
Our new LED highbay combines high-end components for smart wireless control with superior lighting performance for demolishing disable glares.
LOW UGR, <19!
Ultimate choice to replace your current annoying glare lights in your Sport Venues.
First time to introduce EN 12464 standard of UGR to sport lighting sector.
The Recipe I to lower UGR
Multiple luminous baskets inside luminaire with opaque square grid channels
The Recipe II to comfortable lighting
The design spirit of “Never expose the led matrix directly to the eyes” are embedded in our designer’s minds during the product designs.
Now see how we turned it into elegant solutions.
The best depth of rectangle shade encompassing all bare LEDs
Mitigate glare-related headaches and eyestrain
The Recipe III to UGR<19
Our optical engineer creatively designed this sharping narrow beam angle, decreasing the luminance of the luminaire as seen by the viewer.
Now you can select from the premium classification for better confidence in the glare performance of the products you specify or install.

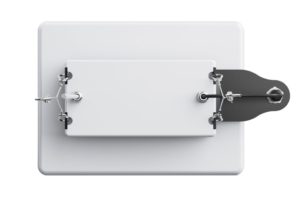

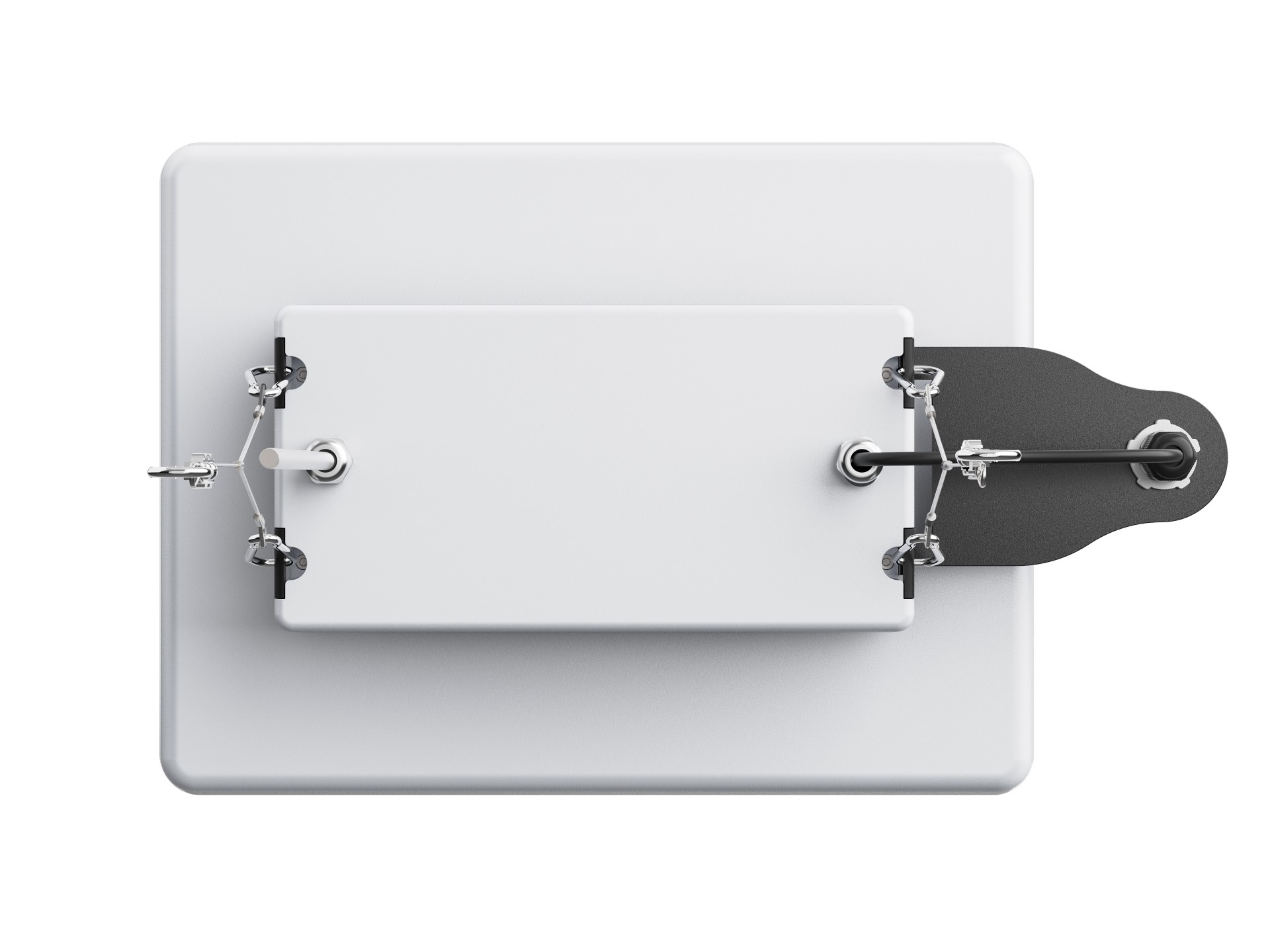

Optimized Thermal Management
A well designed substantial heat sink is definitely the key to longevity therefore we introduced the leading CNC integrated die-casting process to shape this heat sink.
Enjoy this elegant beauty!
The Lab testing datum say everything
Excellent cooling system and performance achieves that the temperature of the LED chip footer is never exceeding 60 degree at ambient 25℃.
Longlife with 50,000 hours can be ensured.

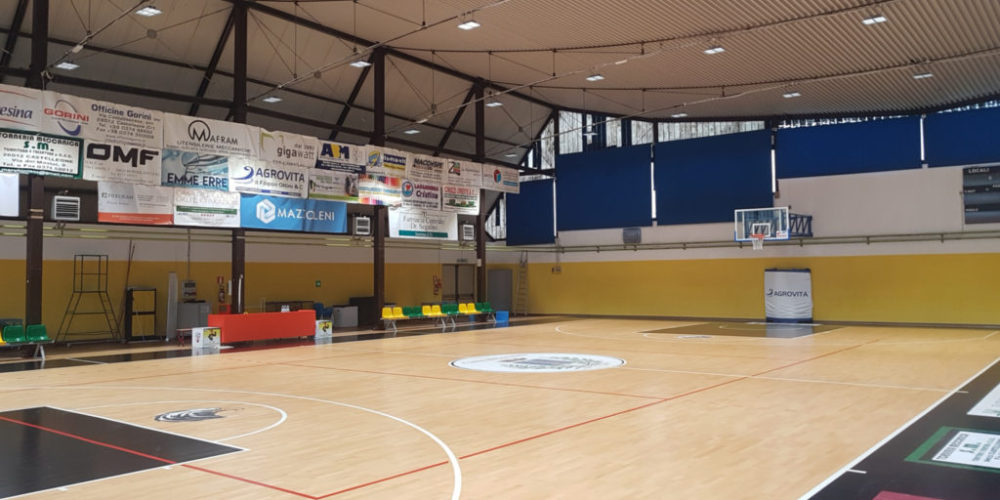

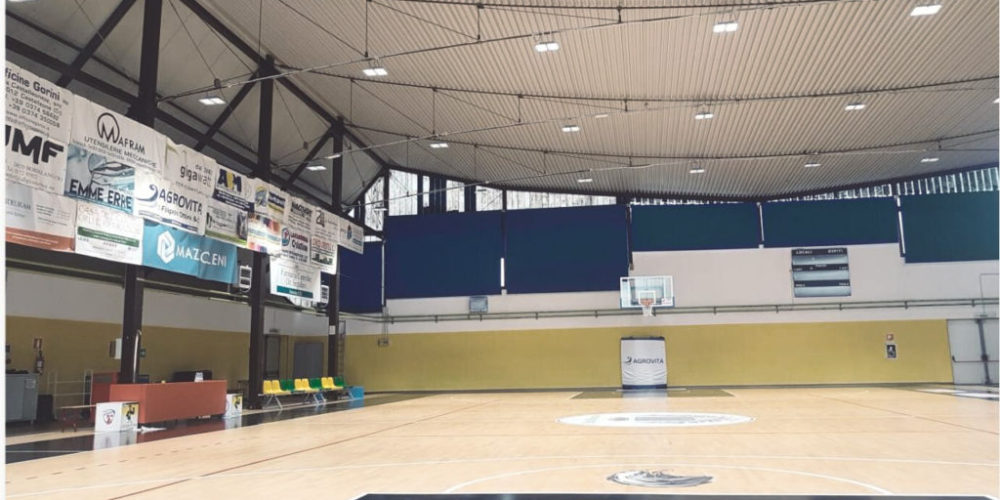

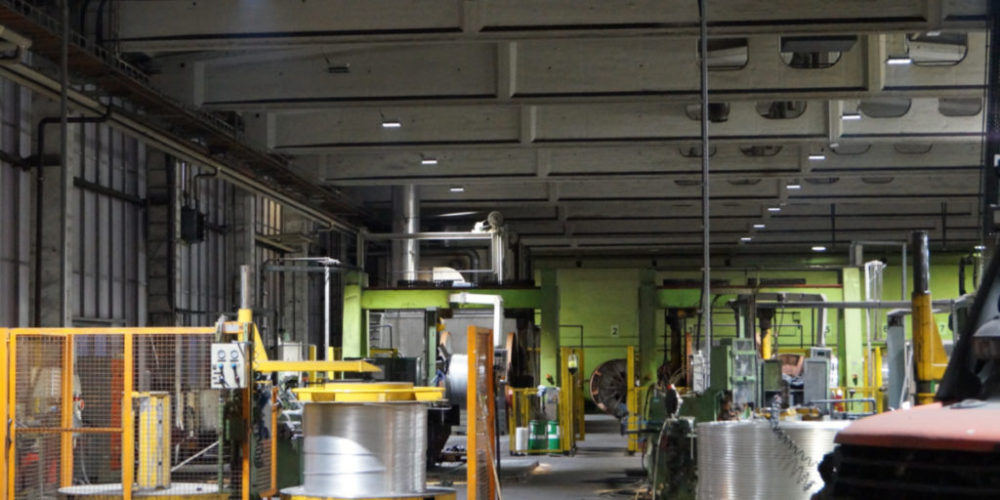

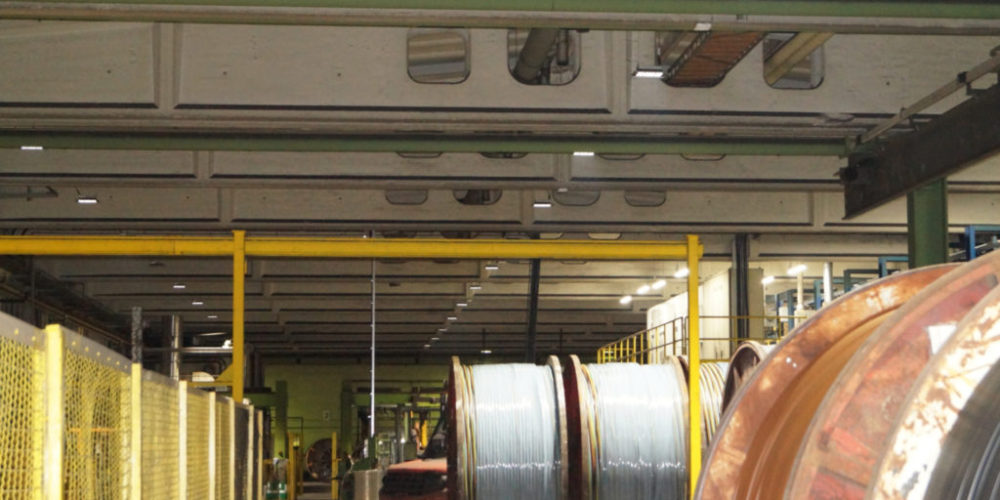

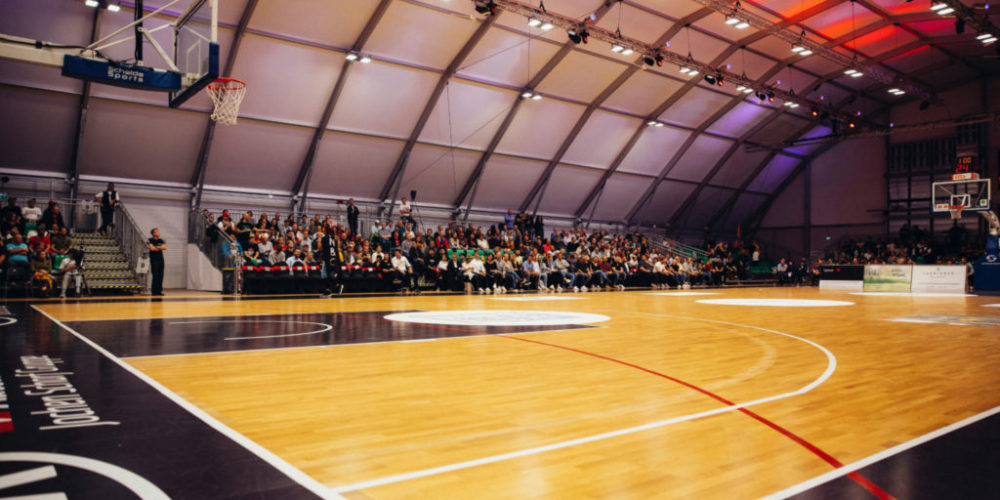

Amazing shows at such sport fields and industrial plants
Specifications Family
Wattage | Lumen Output | Luminous Efficacy | Color Temp | CRI | Beam Angle | Power Supply | Input Voltage | Operating Temp | Lifespan@LM-80 | IP Rate | IK Rate | Dimming Options | Dimension | Net Weight | Warranty | |
60W | 7,800LM | 130lm/w | 5000K | 80 | 30*90° 80° 110° | Meanwell | 100~277Vac 50/60Hz PF>0.95 | -25ºC~50ºC | >60,000 hours | IP65 | IK10 | ZIGBEE DALI 0/1~10V MICRO-WAVE | L362mm W257mm H120mm | 4.2KGS | 5 years+ 1 years onsite check | |
100W | 13,000LM | 130lm/w | 5000K | 80 | 30*90° 80° 110° | Meanwell | 100~277Vac 50/60Hz PF>0.95 | -25ºC~50ºC | >60,000 hours | IP65 | IK10 | ZIGBEE DALI 0/1~10V MICRO-WAVE | L362mm W257mm H120mm | 4.2KGS | 5 years+ 1 years onsite check | |
150W | 19,500LM | 130lm/w | 5000K | 80 | 30*90° 80° 110° | Meanwell | 100~277Vac 50/60Hz PF>0.95 | -25ºC~50ºC | >60,000 hours | IP65 | IK10 | ZIGBEE DALI 0/1~10V MICRO-WAVE | L415mm W310mm H120mm | 4.5KGS | 5 years+ 1 years onsite check | |
200W | 26,000LM | 130lm/w | 5000K | 80 | 30*90° 80° 110° | Meanwell | 100~277Vac 50/60Hz PF>0.95 | -25ºC~50ºC | >60,000 hours | IP65 | IK10 | ZIGBEE DALI 0/1~10V MICRO-WAVE | L487mm W362mm H120mm | 5.8KGS | 5 years+ 1 years onsite check | |
300W | 39,000LM | 130lm/w | 5000K | 80 | 30*90° 80° 110° | Meanwell | 100~277Vac 50/60Hz PF>0.95 | -25ºC~50ºC | >60,000 hours | IP65 | IK10 | ZIGBEE DALI 0/1~10V MICRO-WAVE | L487mm W362mm H120mm | 7.5KGS | 5 years+ 1 years onsite check | |
360W | 46,800LM | 130lm/w | 5000K | 80 | 30*90° 80° 110° | Meanwell | 100~277Vac 50/60Hz PF>0.95 | -25ºC~50ºC | >60,000 hours | IP65 | IK10 | ZIGBEE DALI 0/1~10V MICRO-WAVE | L720mm W365mm H130mm | 7.5KGS | 5 years+ 1 years onsite check |
